Winchester industrial 8 gauge loads

Winchester Industrial Loads are specifically for use in 8 gauge Winchester Ringblaster and Western Industrial Tools - when used together, they enable you to create a highly effective “impact system” tailored to meet your specific needs.

SYMBOL

VELOCITY

PROJECTILE WEIGHT

HULL MATERIAL

CE8LVPW

Low

3 oz Lead

Paper Wrap Plastic

Used on obstructions of softer material and for close range shooting applications to avoid damage in smaller/shorter kilns.

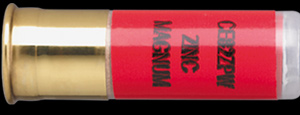

ce82zpw

Magnum

3oz Zinc

Paper Wrap Plastic

Used for hard crust and soft inside build-up. Also used when lead contamination is an issue. This zinc load can be used without the rifled barrel extension.

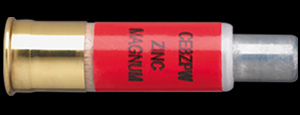

ce8zpw

Magnum

3oz Zinc

Paper Wrap Plastic

Used to remove obstructions 40 feet from the shooting port and beyond. Zinc is a non-toxic material and these loads should be used in place of lead when contamination is an issue. Used for the removal of very hard clinker rings and for ferro-alloy furnace tapping.

The patented rifled barrel extension is recommended when using this load.

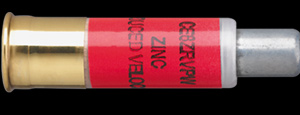

ce8zrvpw

Medium

3oz Zinc

Paper Wrap Plastic

Used when contamination from lead loads is an issue and magnum loads are too powerful.

The patented rifled barrel extension is recommended when using this load.

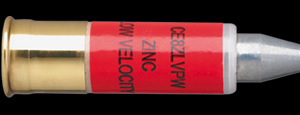

ce8zlvpw

Low

2 7/8 oz Zinc

Paper Wrap Plastic

Used on soft obstructions and for close applications where lead contamination is an issue.

The patented rifled barrel extension is recommended when using this load.

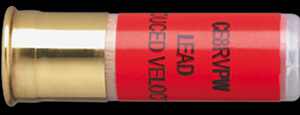

ce8rvpw

Medium

3 oz Lead

Paper Wrap Plastic

Used on obstructions of softer materials and in shorter kilns to avoid damaging end plates and feed pipes.

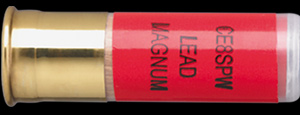

ce8spw

Magnum

3 oz Lead

Paper Wrap Plastic

Used to remove obstructions 40 feet from the shooting port and beyond. These rounds are to be used for removal of very hard material and for the removal of clinker rings.

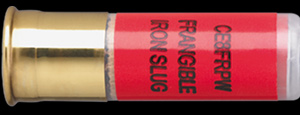

ce8frpw

Magnum

1 5/8 oz Frangible

Paper Wrap Plastic

This is a specialty load used for shooting at close range-nose rings, in coolers. Projectile will fragment upon impact.

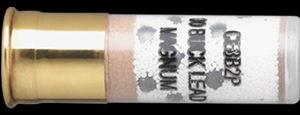

CE8B2P

Magnum

2 oz Lead
00 Buckshot 20 Pellets

Plastic Hull

Used for close range shooting of hard material such as build-ups in storage bins, silos, cyclones adn dust collectors. Also for nose ring removal.

CE8B2ZP

Magnum

8 Pellet Zinc
.425' Buckshot

Plastic Hull

A specialty load to be used when lead buckshot loads cannot be used because of contamination. These loads are effective in waste incinerators to clean build-up in the furnace.

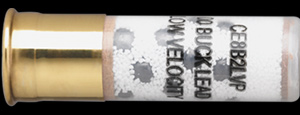

CE8B2LVP

Low

3 oz Lead
00 Buckshot 24 Pellets

Plastic Hull

Used to removed ash build-up. Use this load to remove the large build-up, then switch to the lighter CE8HV2P and CE8LV2P loads to prevent tube damage. The full choke attachment is not effective with this load.

*should never be used while boiler is on line.

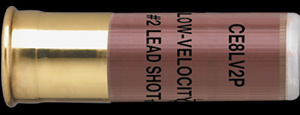

CE8LV2P

Low

3 oz #2 Shot

Plastic Hull

Used in electric power plants for ash build-up removal 40+ feet from shooting port. Can be used on ash build-up while power plant is on line. If the build-up is beyond 40 feet, Winchester recommends using the full choke extension.

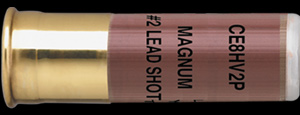

CE8HV2P

Magnum

3 oz #2 Shot

Plastic Hull

Used for ash build-up removal in electric power plants. SHould be used on build-up beyond 40 feet away from shooting port. When using this load for distances beyond 60 feet, Winchester recommends using the full choke extension.
